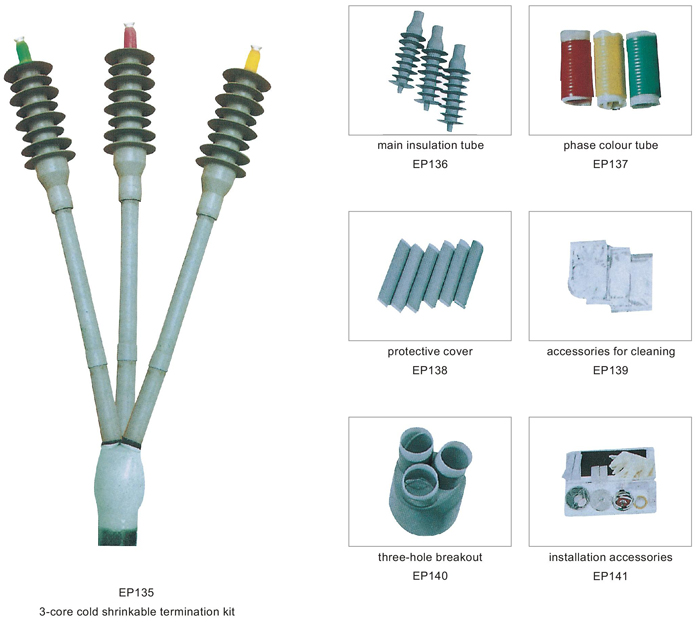

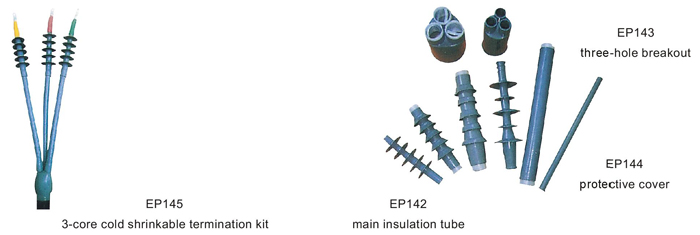

the cold shrink termination is made by special pre-expand technology,even one kind of specification can fit for many kinds of cable wire dimension with good compatibility.For the structure it is prefab compact designed,making a complete line of stress control tube,rain shed and insulation tube.Up to now,we have possessed complete series of 33kv(others less than 35kv)the cold shrink termination fit for different variety of insulated cables such as polythene cable,etc.Applicable for bridge stand,embedding and trollywire and so on.The silasticma-terials indicate large use range for the cold shrink termination.
11kv、33kv Silicon power cable terminals accessories
| item | Specification | Applicable cable section(mm2) |
| (1-core)Indoor termination kit | Full cold shrinkable type NLS-11/1.□ |
Full shrinkable type is divided into 5specification with cable section area code, "1"is 25-50,"2" is 70-95; "3"is120-150;"4" is 185-240; "5"is 300-400; |
| (1-core)Outdoor termination kit | Full cold shrinkable type WLS-11/1. □ | |
| (3-core)Indoor termination kit | Full cold shrinkable type NLS-11/3.□ | |
| (3-core)Outdoor termination kit | Full cold shrinkable type WLS-11/3.□ |
| item | Specification | Applicable cable section(mm2) |
| (1-core)Indoor termination kit | Full cold shrinkable type NLS-33/1.□ |
Full shrinkable type is divided into 5 specification with cable section area code, "1"is 25-50,"2" is 70-120; "3"is150-240;"4" is 300-500; |
| (1-core)Outdoor termination kit | Full cold shrinkable type WLS-33/1. □ | |
| (3-core)Indoor termination kit | Full cold shrinkable type NLS-33/3.□ | |
| (3-core)Outdoor termination kit | Full cold shrinkable type WLS-33/3.□ |
11kv cold shrinkable joints
| item | Specification | Applicable cable section(mm2) |
| Mid pilc 1-core joint | JLS-11/1.1 |
Full shrinkable type is divided into 5 specification with cable section area code. “1” is 25-50.“2”is70-95; “3” is 120-150’ "4" is 185-240; "5" is 300-400; |
| JLS/11/1.2 | ||
| JLS/11/1.3 | ||
| JLS/11/1.4 | ||
| JLS/11/1.5 | ||
| Mid pilc 3-core joint | JLS/11/3.1 | |
| JLS/11/3.2 | ||
| JLS/11/3.3 | ||
| JLS/11/3.4 | ||
| JLS/11/3.5 |
